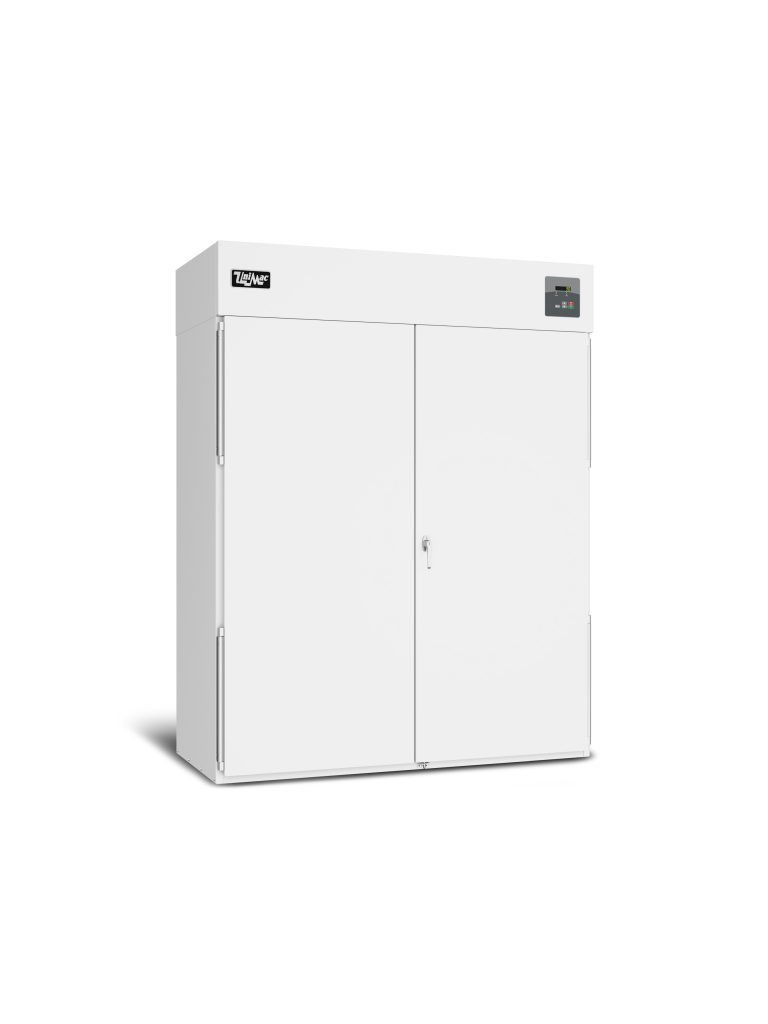

Firefighter’s PPE Drying Cabinet

Firefighter’s PPE Drying Cabinet - UTGC6EDG44

The UniMac® PPE Drying Cabinet offers preset programs ranging from 1.5 to 3 hours to help you greatly reduce drying time versus conventional methods. Simply select one of the five presets and press “Start,” and get your PPE back into service fast. With a dual-sided airflow process, the dryer sends heated air around and inside your turnout gear for thorough drying at maximum speed and efficiency, therefore reducing utility costs. Combine the dryer with a UniMac washer-extractor to help comply with NFPA 1851 guidelines, and gain added peace of mind with a one-year warranty.

Model number: UTGC6EDG44

Control: Microprocessor Control

Resources: ARCAT SpecWizard, CAD Symbols


Capacity – lb (kg)6 full sets of Turnout Gear

Heat Input Power12 kW

Electrical Specs

(D) 200-208V/50/60/160 amp breaker

(F) 200-208V/50/60/335 amp breaker

(E) 230-240V/50/60/170 amp breaker

(G) 230-240V/50/60/340 amp breaker

(P) 380-415V/50/60/325 amp breaker

Exhaust Outlet Diameter – in (mm)6″ (152)

Airflow - cfm (liters/sec)300 (510)

Width – in (mm)61 1/8″ (1552)

Depth – in (mm)32 5/8″ (828)

Height – in (mm)80 3/8″ (2042)
79 7/16″ (2018)

Net Weight – lb (kg)534 (242)

Domestic Shipping Weight – lb (kg)605 (274)

Agency ApprovalsCSA

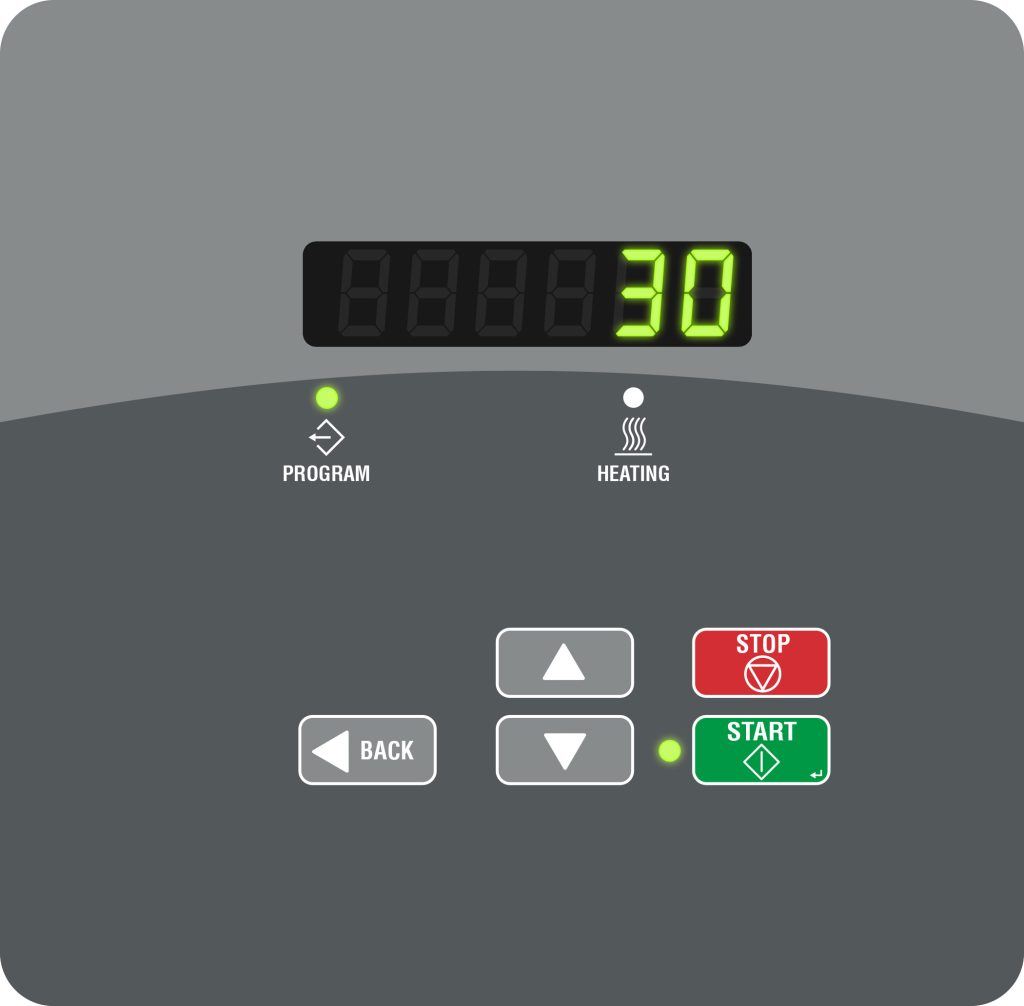

Control Option

Microprocessor Control

Microprocessor Control is designed to manage the drying and cooling cycles of the gear cabinet. The controller is pre-programmed with five different default programs, or the operator may modify the default programs. The operator has the flexibility to select the time for the drying and cool-down cycles and the drying temperature.

Firefighter's PPE System Features


UniMac’s PPE Drying Cabinet offers preset programs ranging from 1.5 hours to 3 hours to help you greatly reduce drying time versus conventional methods – getting your PPE back into service fast.

User Friendly

Operating the dryer is as simple as selecting one of the five presets and pressing the start button. Additional time can be added as required.

Lower Utility Costs

Our dual-sided airflow process not only sends heated air around the gear, but also through the inside for maximum speed and efficiency. In addition, air is recirculated to further increase efficiency for lower utility costs.


The PPE Drying Cabinet becomes more versatile with optional rack attachments, effectively drying boots and gloves in addition to other turnout gear. The UniMac PPE Drying Cabinet utilizes a dual air movement to quickly and gently dry turnout gear, including boots and gloves, in a matter of hours.
