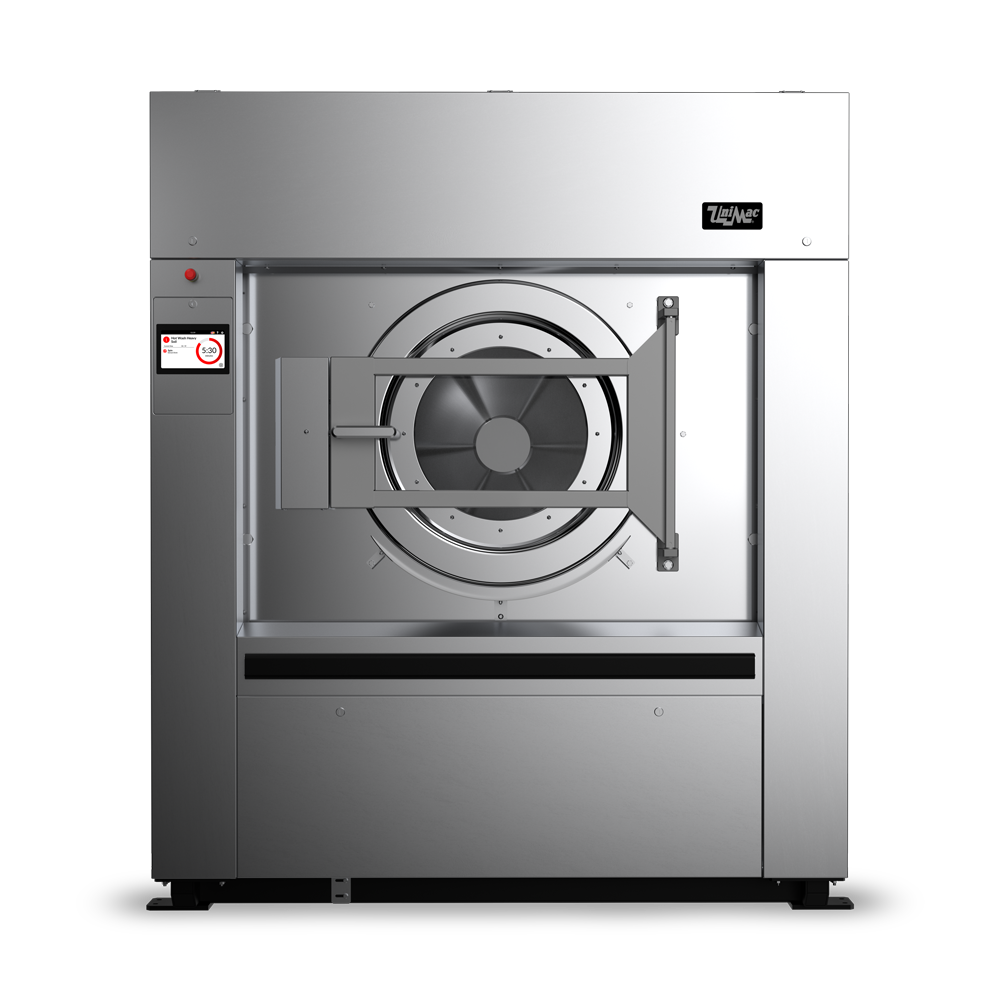

Softmount Commercial Washer Extractor
275 lb capacity - UYN275
Ideal for second-floor on-premises laundries or other installations where a poured foundation isn’t an option, UniMac® UY model softmount washer-extractors offer the perfect solution. Like all UniMac commercial laundry equipment, these reliable laundry machines are built with unyielding construction to ensure industrial strength. With cutting-edge innovations and green technologies, they’re designed to reduce costs and maximize throughput. These machines can withstand the harsh demands of commercial and on-premises laundry facilities in a variety of industries, from athletics to hospitality. In addition, innovative ECO Technology washing programs and unique product design features greatly reduce water costs, delivering 15% water savings versus older models in the market. Pair them with UniMac tumble dryers that feature industry-leading OPTidry™ Over-dry Prevention Technology, and optimize throughput for your entire laundry.
Capacity – lb (kg)275 (120)
DimensionsWith TiltWithout Tilt
Width – in (mm)73 (1855)74 9/16 (1895)
Depth – in (mm)82 1/8 (2085)100 1/2 (2553)
Height – in (mm)82 1/8 (2085)103 1/2 (2628)
Cylinder Diameter – in (mm)51 3/16 (1300)
Cylinder Depth – in (mm)34 1/4 (870)
Cylinder Volume – cu. ft. (liters)41.7 (1180)
Door Opening Size – in (mm)25 5/8 (650)
Door Bottom To Floor – in (mm)42 1/2 (1080)
Wash Speed – RPM32
Extract Speed – RPM695
Water Inlet Connection – in (mm)3 x 1 1/2 (38)
Steam Connection – in (mm)1 (25)
Drain Connection Size – in (mm)2 x 4 (103)
Motor Size – HP (kW)24.81 (18.50)
Voltage / Hz / Phase Circuit208-240V 50-60Hz 3ph400-480V 50/60Hz 3ph
Shipping Dimensions Approx.With TiltWithout Tilt
Height – in (mm)92 1/8 (2340)98 (2490)
Width – in (mm)78 3/4 (2000)80 5/16 (2040)
Depth – in (mm)85 7/16 (2170)93 1/2 (2375)
Net Weight – lb (kg)7672 (3480)8466 (3840)
Domestic Shipping Weight – lb (kg)8179 (3710)8951 (4060)
Take control of your laundry with the cutting-edge PROform Control, featuring 99 programming options, eight liquid chemical connections, multilingual capability and a variety of extra functions from soak to advanced start. Easy and intuitive, the graphical display provides numeric keypads and is organized for simple control and navigation. Update wash programs manually on the machine, use a USB memory stick or update on your PC via LMS. Additionally, an end-of-cycle signal allows you to maximize efficiency.
Our softmount washer-extractors not only save on utility costs, but on installation time and costs as well. The freestanding design installs quickly with same-day operation. These machines are the perfect choice for second-floor laundries or other installations where a concrete floor isn’t an option. Heavy-duty coil springs eliminate the need for special foundations, and strategically placed shock absorbers result in a tuned suspension system that absorbs out-of-balance load vibrations.
Reduce Labor and Utility Costs
Our UY Series machines are constructed to make your laundry operation more efficient and deliver green technologies to reduce two of your largest expenses — labor and utility costs. Laundry Management System (LMS), powered by the PROform Control, gives you complete control of machine setup and wash program updates. With location management, maintenance data and alarms via email — all through a wired or wireless Wi-Fi connection — monitoring your laundry and maximizing productivity have never been easier.
Our softmount washer-extractors are manufactured with unyielding construction and industrial strength. They’re designed with high-quality, stainless steel front, top and side panels and reinforced side panels for increased strength and durability. The formed steel frame is engineered with robust technology for added strength. And a modular bearing housing design ensures the equipment is long lasting and easy to service. This product also offers an inverter drive system that delivers low energy use, higher torque, high extraction speed, lower noise and less imbalance.
