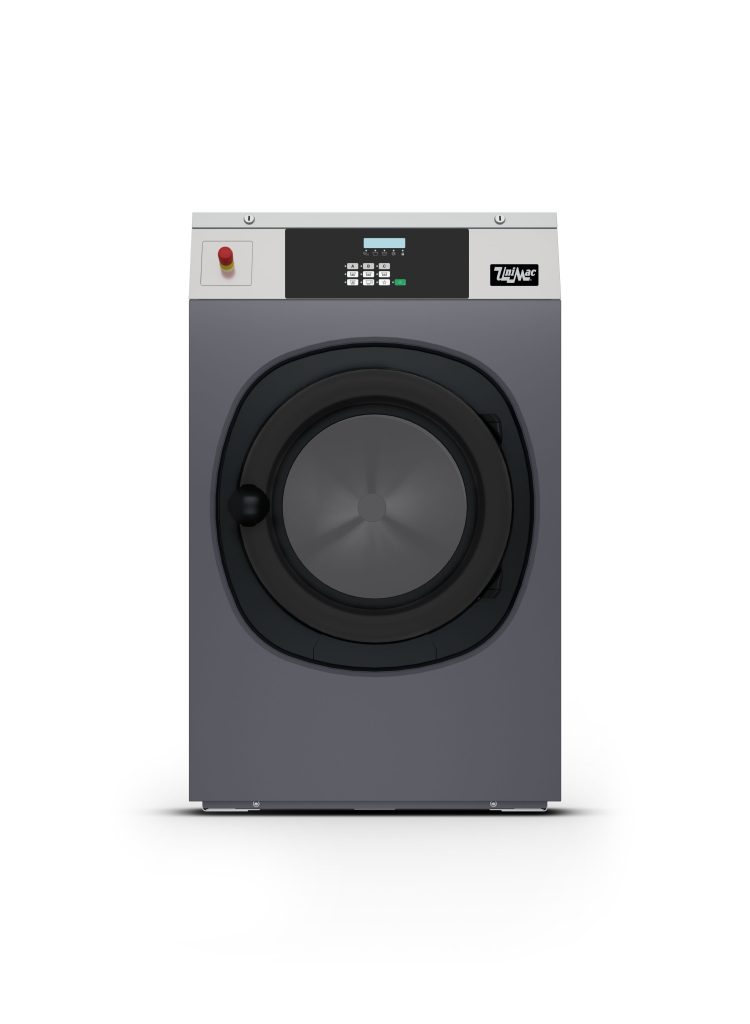

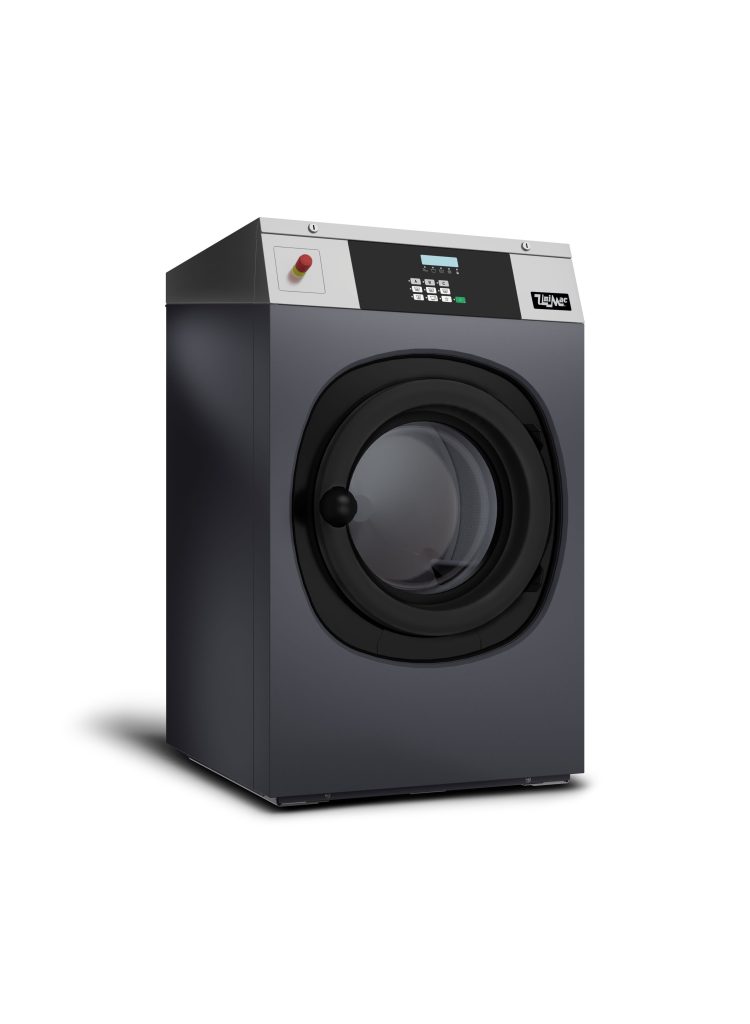

Value Line Cabinet Hardmount Washer-extractor

55 lb capacity - PAN055TN0MZA20CTAA

Not every laundry has the volumes that require a truly industrial solution. For these operations, Value Line hardmounts deliver exceptional performance and finished quality at a price that’s easy on an operations budget. These washer-extractors feature a 200 G-Force final spin speed to trim drying times, and large drain valve to drive fast cycles. The user-friendly XControl+ offers managers the ability to tailor cycles (up to 99 cycles) to the operation’s specific needs, or they can utilize 20 pre-set wash programs. The Value Line features 30-, 40-, and 55-pound capacity options.

Model number: PAN055TN0MZA20CTAA

Control: XControl+

Available Options

Specifications

Control OptionsXControl+

Capacity – lb (kg)55 (24)

Width – in (mm)35.03 (890)

Depth – in (mm)41.73 (1,060)

Height – in (mm)55.51 (1,410)

Cylinder Diameter – in (mm)29.53 (750)

Cylinder Depth – in (mm)21.46 (545)

Cylinder Volume – cu. ft. (liters)8.5 (240)

Door Opening Size – in (mm)18.11 (460)

Door Bottom To Floor – in (mm)18.31 (465)

Water Inlet Connection – in (mm)2 x 0.75 (19)

Steam Connection – in (mm)-

Drain Diameter – in (mm)1 @ 3″ (76)

Drain Height to Floor - in (mm)5.12 (130)

Motor Size – HP (kW)2.01 (1.5)

Total # of Speeds42

Cylinder Speed – RPM (G-Force)690 (200)

Voltage / Hz / Phase CircuitNo HeatHeat

(B) 120V/60/1--

(Z) 200-240/60/115 - 9.2-

Shipping Dimensions Approx.

Width – in (mm)36.42 (925)

Depth – in (mm)44.49 (1,130)

Height – in (mm)61.02 (1,550)

Net Weight – lb (kg)728 (330)

Domestic Shipping Weight – lb (kg)783 (355)

Agency ApprovalsCSA

Features

Control Options

XControl+

Fully programming XControl+

  • 20 pre-set wash programs
  • 99 programming cycles
  • Graphical display

Lower Utility and Labor Costs

Worry-Free Performance

Our heavy-duty computer-optimized frame is designed to be stronger than ever. In addition to standing up to the toughest laundry conditions, it also handles unbalanced loads more efficiently for a quieter operation.
