Industrial Tumble Dryers
75 lb capacity - UT075NVN
UniMac® tumble dryers are in a league of their own in terms of performance and efficiency. These durable commercial laundry machines achieve the perfect balance between drying temperature, airflow pattern and usable cylinder space for optimal drying results while significantly reducing utility and labor costs. To further reduce operating expenses, these industrial laundry machines feature innovations like the revolutionary OPTidry™ Over-dry Prevention Technology. Available in a variety of sizes, UniMac commercial tumble dryers meet the needs of commercial and on-premises laundries of all types and sizes.
Control OptionsUniLinc Touch, M-Series, Dual Digital Timers
Capacity – lb (kg)75 (34)
Width – in (mm)38.5 (980)
Depth – in (mm)53.0 (1350)
Height – in (mm)77.3 (1960)
Cylinder Diameter – in (mm)37.0 (940)
Cylinder Depth – in (mm)36.0 (914)
Cylinder Volume – cu. ft. (liters)22.4 (634)
Door Opening Size – in (mm)26.9 (683)
Heat Input Power165,000 Btu/hr
Gas Inlet Connection – in (mm)*1/2
Steam Connection – in (mm)*3/4
Air Outlet - in (mm)*8 (200)
Motor Size – HP (kW)*0.5
Airflow - cfm (liters/sec)*800 (380)
Electrical Specs*Gas & SteamElectric
Shipping Dimensions Approx.**
Width – in (mm)**41.5 (1054)
Depth – in (mm)**56.0 (1420)
Height – in (mm)**81.0 (2060)
Net Weight – lb (kg)**715 (324)
Domestic Shipping Weight – lb (kg)**760 (345)
*Field conversions available for LP gas.
**X voltage can be connected to 1 or 3 phase power and operates on 1 phase only

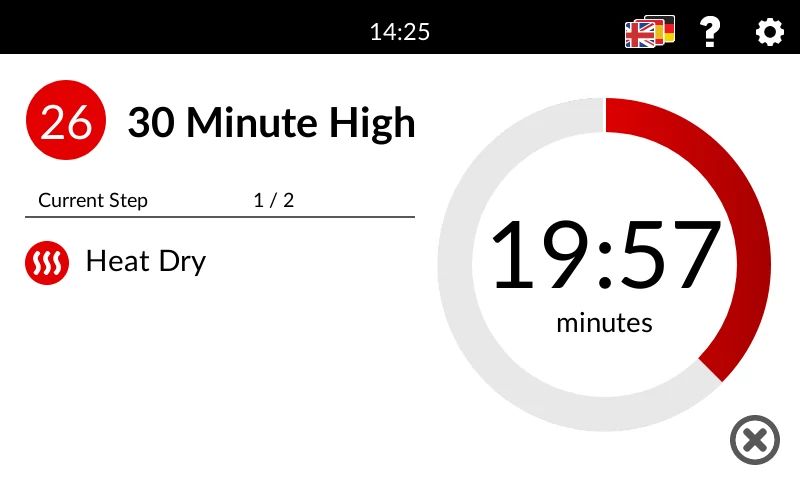

The biggest threat to quality is staff selecting the incorrect wash cycle. UniLinc Touch virtually eliminates that threat with the most intuitive control on the market.
- 34 languages ensure all staff cannot just operate, but operate it correctly
- Real words – no codes – no ambiguity
- Training time significantly shortened (a giant bonus with staff turnover generally being high)
- Continuity – same control on washer-extractors and tumble dryers
- Ultimate flexibility means your operation is positioned for success well into the future.
- Lower utility and labor costs
This customizable control allows any combination up to 30 auto-dry and time-dry cycles to be saved, providing easy user interface.
Dual Digital Timers
Dual Digital Timers
This economy control allows for the operator to select the ideal temperature, heating time and cooling time for each use.
